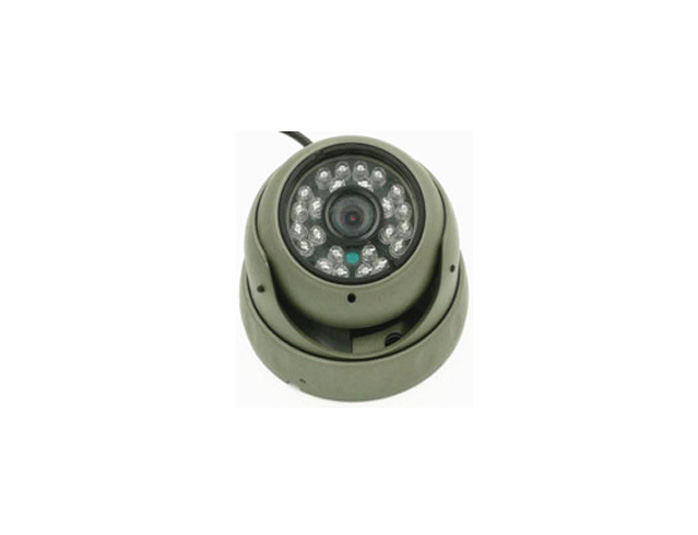

24 infrared lights, effective distance of 15 meters
Aluminum alloy shell, not easy to age, high temperature resistance.
Standard 3.6mm lens, optional other specifications lens
High definition, up to 800 lines
Digital fill light, infrared night vision, good effect when the light is insufficient
The internal circuit is optimized many times, low power consumption, stable and reliable
Standard 4-pin aviation connector, can also be customized according to customer needs
support hotline 0755-29470519
Product Details
structure size
The structure size is shown in the figure below, the unit is millimeters, the error is ±0.6mm, the outer diameter of the product base is φ93.00mm, and the total height is 68.00mm (as shown in the figure below).
Product parameter
1
Product number
TYD-971
2
shell material
metal shell
3
Exterior color
Han Hui
4
Imaging device
PC1099N
5
Signal System
PAL
6
Effective Pixels
976(H)×496(V)
7
Synchronization system
Internal synchronization
8
Horizontal resolution
800TVL
9
Minimum illumination
0 LUX{infrared start}
10
Video output
1.0vp-p, 75Ω
11
Gamma coefficient
0.45
12
Signal-to-noise ratio
Greater than 48dB
13
White balance
Auto
14
Electronic shutter
1/60-1/100000 (seconds)
15
BLC
Auto
16
Current
225mA±10% (infrared start), 48mA±10% (infrared does not start)
17
Voltage
DC 12V±10%
18
Operating temperature
-20℃~75℃
19
Relative ambient temperature
Humidity is between 30%~85%
20
Camera angle
2.8mm/110°
21
Connection connector
Standard 4-core aviation head (customizable)
22
microphone
Tape recording
23
Camera weight
300g
Standard configuration
Serial number
name
quantity
unit
Remark
1
Big Conch Camera
1
Only
Standard
2
Self-tapping screws
3
Pieces
Standard
3
Hexagon socket screws
6
Pieces
Standard
4
Allen wrench
1
Bundle
Standard
Connector description
1 VCC-12V power supply 2 GND-ground 3 Audio signal (optional) 4 video signal
